產品介紹：
汽水分離器/STEAM-WATER SEPARATOR
優點：
汽水分離器利用體內幾何圖形和蒸汽與水流動的原理產生不同流向，將蒸汽和蒸汽中水滴分離，提高蒸汽干燥度，保證生產的運行。1、提高蒸汽干燥度，保證用汽設備的使用溫度，提高設備的熱效率。
2、在用汽設備前端，分離冷凝水防止水擊現象產生。
3、使用于各種氣體和液體的分離。
Merits
Gas-water separators separate steam and drip in the steam on the basis of inner geometrical figure and principle of different flowing of steam and water,so as to increase steam dryness to assure operation.
1.Improvement of steam dryness,assurance of using temperature of steam using equipment,and improvement of heat efficiency of the equipment.
2.Separation of condensate in front of steam using equipment to prevent water hammer.
3.Adoptable for separation of separation of various kinds of gases and liquids.
汽水分離器/STEAM-WATER SEPARATOR
技術參數/Technique parameter
|
產品型號 Product model |
技術參數/Technique parameter |
|||
|
閥體材料 Valve body materials |
PMA（Mpa） |
最高允許溫度（℃） Maximum allowable temperature |
適用介質 Used medium |
|
|
GS3 GS1、GS7 GS13 |
鑄鐵 Cast-iron 碳鋼 Carbon steel 碳鋼 Carbon steel |
1.6 1.6 2.5 |
220 420 420 |
蒸汽、氣體、凝結 水Steam、Gas、Condensate water 蒸汽、氣體、凝結水 Steam、Gas、Condensate water 蒸汽、氣體、凝結水 Steam、Gas、Condensate water |
主要零件材料/The materials of primary accessories
零部件名稱
Part and component name
材質
Material
閥體、閥蓋
Valve body、Valve cover
鑄鐵、碳鋼
Cast-iron、Carbon steel
濾罩
Filtration cover
不銹鋼
Stainless steel

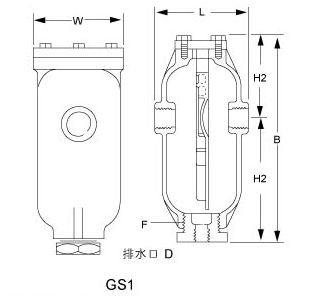

外形尺寸和重量/Prime out-form dimensions and weigh
|
產品型號 Product model |
口徑(DN) Calibre |
L法蘭 Flange |
L螺紋/ 焊接 Thread/ welding |
H1 |
H2 |
D（排口） Vent |
使用壓力 范圍(MPa) Pressure change range |
公稱壓力 (MPa) Nominal pressure |
|
GS1 |
15-25 |
210 |
135 |
115 |
145 |
絲口 |
0.1-2.5 |
2.5 |
注解：
1、提供連接尺寸和法蘭標準。2、正確安裝、清除閥內雜質。
Note
1.To offer joining size and flange standard.
2.To assure proper installation and clean out impurities inside.
