美標波紋管截止閥

產品介紹：

應用規范
1、設計制造：按ANSIB16.34;API600;API602
2、結構長度：按ANSIB16.10;JISB2002
3、連接端法蘭尺寸：①150;300或600磅級按ANSIB16.5(RF);
②900磅級按ANSIB16.5(RJ);
4、閥門檢驗和試驗：按API598
5、結構特征：①B.B;OS&Y或W.B;OS&Y;②縮徑(R.P)或全徑(F.P)
6、材料：按ANSI/ASTM的規定
7、主體材料：A105;F5;F11;F22;304;304L;316;316L;LF2等
Application criterion
1.Design and manufacture:According to ANSIB16.34;API600; API602
2.Structure length:according to ANSIB16.10;JISB2002
3.Size of connecting end flange:①150;300 or 600 pound grade,according to ANSIB16.5(RF);
②900 pound grade,according to ANSIB16.5(RJ);
4.Valve inspection and test:according to API598
5.Structure characteristics:①B.B;OS & Y or W.B;OS & Y;②reduced port (RF) or full port (FP)
6.Materials:According to ANSI/ASTM requirements
7.Materials of main body:A105;F5;F11;F22;304;304L;316;316L;LF2,etc.
美標波紋管截止閥/ANSI BELLOWS GLOBE VALVE

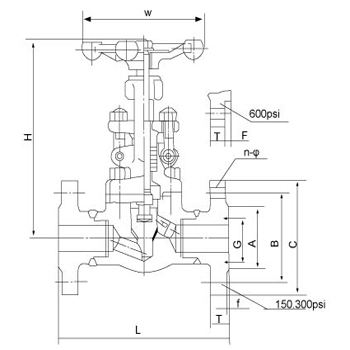

外形尺寸和重量/Prime out-form dimensions and weight

規格DN Specifications		壓力磅級 Pressure pound grade	L	H(開)		M		A	B	C	T	f	n-φ	重量 (kg) Weight
英制 British system	公制 Metric	壓力磅級 Pressure pound grade	L	縮徑 Reduced port	全徑 Full port	縮徑 Reduced port	全徑 Full port	A	B	C	T	f	n-φ	縮徑 Reduced port	全徑 Full port
1/2	15	150	108	158	163	100	100	35	60.5	89	11.5	1.6	4-16	4.5	6.9
		300	152						66.5	95	14.5	1.6	4-16	4.8	7.7
		600	165						66.5	95	14.5	6.4	4-16	5.6	7.8
3/4	20	150	117	163	193	100	125	43	70	98	13	1.6	4-19	6.9	9.8
		300	178						82.5	118	16	1.6	4-19	7.7	11.3
		600	190						82.5	118	16	6.4	4-19	7.8	12.5
1	25	150	127	193	250	125	160	51	79.5	108	14.5	1.6	4-16	9.8	13.5
		300	203						89	124	17.5	1.6	4-19	11	16.8
		600	216						89	124	17.5	6.4	4-19	12.5	17.5
1?	32	150	140	250	250	160	160	63	89	118	16	1.6	4-16	13.5	19.5
		300	216						98.5	133	19.5	1.6	4-19	16.8	21.2
		600	229						98.5	133	21	6.4	4-19	17	23.5
1?	40	150	165	250	291	160	180	73	98.5	127	22.5	1.6	4-16	19.5	28.5
		300	229						114.5	156	19.5	1.6	4-22.5	21.2	32.6
		600	241						114.5	156	22.5	6.4	4-22.5	23.5	38.5
2	50	150	203	291	312	180	200	92	120.5	152	19.5	1.6	4-19	28	30.3
		300	267						127	165	22.5	1.6	8-19	32.6	35
		600	292						127	165	25.5	6.4	8-19	38.8	42.2

壓力磅級 Pressure pound grade	規格DN Specifications		L	H (開)	W	G	A	B	C	T	f	n-φ	重量 (kg) Weight
壓力磅級 Pressure pound grade	英制 British system	公制 Metric	L	H (開)	W	G	A	B	C	T	f	n-φ	B.B	W.B
900	1/2	15	216	207	100	39.67	60.5	82.5	120	22.5	6.4	4-22	7.4	8.0
	3/4	20	229	207	100	44.45	66.5	89	130	25.5	6.4	4-22	12.5	13.2
	1	25	254	240	125	50.8	71.5	101.5	150	29.5	6.4	4-26	16.0	17.4
	1?	32	279	258	160	60.32	81.0	111.1	159	29.5	6.4	4-26	17.2	19.0
	1?	40	305	290	160	68.28	92.0	124	180	32.0	6.4	4-30	23.0	24.5
	2	50	368	337	180	95.25	124.0	165.1	216	38.5	7.9	8-26	29.8	31.0

應用規范
1、設計制造：按ANSIB16.34;API602
2、連接端尺寸：①承插孔尺寸按ANSIB16.11;JISB2306;
②螺紋端尺寸按ANSIB1.20.1;BS21;ISO7/1;JISB0203
3、閥門檢驗和試驗：按API598
4、結構特征：①B.B;I.S或W.B.I.S
5、材料：按ANSI/ASTM的規定
6、主體材料：A105;F5;F11;F22;304;304L;316;316L;LF2等

Application criterion
1.Design and manufacture:According to ANSIB16.34;API602
2.Size of connecting end: ①for size of socket joint hole:according to ANSIB16.11;JISB2306;

②for size of thread end:according to ANSIB1.20.1;BS21;ISO7/1;JISB0203
3.Valve inspection and test:according to API598
4.Structure characteristics:①B.B;I.S or W.B.I.S
5.Materials:in compliance with ANSI/ASTM requirements
6.Materials of main body:According to A105;F5;F11;F22;304;304L;316;316L;LF2,etc.

美標波紋管截止閥/ANSI BELLOWS GLOBE VALVE

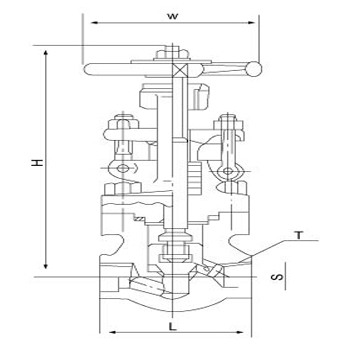

壓力磅級 Pressure Pound grade	規格DN Specifications				S				L	T（in）				W	H （開）	重量 (kg) Weight
	英制 British system		公制 Metric		ANSI		JIS			ANSI		JIS、 ISO、 BS
	英制 British system		公制 Metric		ANSI		JIS			NPT 牙形60°		PT或RC 牙形55°
	縮徑 Reduced port	公制 Metric	縮徑 Reduced port	公制 Metric	縮徑 Reduced port	公制 Metric	縮徑 Reduced port	公制 Metric		縮徑 Reduced port	公制 Metric	縮徑 Reduced port	公制 Metric			縮徑 Reduced port	公制 Metric
150~800 1500	1/4		8		14.2		14.3		79	1/4		1/4		100	157	1.9	2.2
	3/8	1/4	10	8	17.6	14.2	17.9	14.3	79	3/8	1/4	3/8	1/4	100	157	1.9	2.2
	1/2	3/8	15	10	21.8	17.6	22.2	17.9	79	1/2	3/8	1/2	3/8	100	157	1.9	2.0
	3/4	1/2	20	15	27.1	21.8	27.2	22.2	92	3/4	1/2	3/4	1/2	100	162	2.1	1.9
	1	3/4	25	20	33.8	27.1	34.5	27.2	111	1	3/4	1	3/4	125	195	3.3	2.4
	1?	1	32	25	42.6	33.8	43.2	34.5	120	1?	1	1?	1	160	267	7.5	3.5
	1?	1?	40	32	48.7	42.6	49.1	43.2	152	1?	1?	1?	1?	160	267	7.5	8.0
	2	1?	50	40	61.1	48.7	61.1	49.1	172	2	1?	2	1?	180	301	11.4	8.6
		2		50		61.1		61.1	200		2		2	240	312		14.4
	1/4		8		14.2		14.3		111	1/4		1/4		100	207	2.4
	3/8	1/4	10	8	17.6	14.2	17.9	14.3	111	3/8	1/4	3/8	1/4	100	207	2.2	2.4
	1/2	3/8	15	10	21.8	17.6	22.2	17.9	111	1/2	3/8	1/2	3/8	100	207	2.0	2.2
	3/4	1/2	20	15	27.1	21.8	27.2	22.2	111	3/4	1/2	3/4	1/2	100	207	1.8	2.0
	1	3/4	25	20	33.8	27.1	34.5	27.2	130	1	3/4	1	3/4	125	240	3.6	3.8
	1?	1	32	25	42.6	33.8	43.2	34.5	152	1?	1	1?	1	160	258	3.9	4.2
	1?	1?	40	32	48.7	42.6	49.1	43.2	172	1?	1?	1?	1?	160	290	7.5	8.0
	2	1?	50	40	61.1	48.7	61.1	49.1	220	2	1?	2	1?	180	337	12.5	13.2
		2		50		61.1		61.1	235		2		2	200	354		16.8
