Disc Trap
When starting the device,firstly,the air and condensed water will flow across steam trap under rather low pressure,and lift valve plate through the entrance hole,and then discharge from the exit hole.After the pressure and temperature rise,the inner pressure will also rise,and cause increased amount of condensed water and increased flow rate,at the moment, the static pressure of valve plate declines which causes the drop of valve plate,and then,the steam flows from all directions via the exit hole into the gap between the valve plate and the valve cover.After steam enters the pressure chamber,it shuts down the valve by pressing valve plate onto the sealing ring.When the steam temperature inside the pressure chamber begins descending and the steam begins to congeal,the pressure declines in the pressure chamber,and the inlet pressure lifets the valve plate,and then the steam trap opens and discharge water.
優點：
1、結構簡單，容易安裝和維修，抗水擊，排空性能優越。
2、抗水擊，對壓力突然變化沒有影響。
3、可用于過熱蒸汽系統。
4、可以使用高壓高溫的蒸汽管線。
Merits
1.Simple structure,easy installation and maintenance and water hammer resistant.
2.Water hammer resistant and on effect from abrupt change of pressure.
3.Adoptable for overheat steam system.
4.Adoptable for high-pressure and high-temperature steam pipes.
熱動力式疏水閥/THERMO-DYNAMIC TRAP
技術參數/Technique parameter
|
殼體壓力等級 Shell pressure grade |
負荷泄漏率 Load leakage |
使用介質 Used medium |
殼體材質 Shell material |
允許背壓率 Permitted Backpressure rate |
|
1.6~ 42MPA |
0.3% |
蒸汽、凝結水 Steam、 Condensate water |
鍛鋼、 不銹鋼、 合金鋼 Forged steel、 Stainless steel 、Alloy steel |
75% |
|
最大工作壓差 Maximum operating pressure differential |
使用過熱蒸汽 Use superheated steam |
最高允許溫度 Maximum Allowable temperature |
抗水擊 Resis |
壓力變化范圍 Pressure change range |
|
2.5MPA |
優秀 Excellence |
420℃ |
適應 Adaption |
適應 Adaption |
主要零件材料/The materials of primary accessories
|
零部件名稱 Part and component name |
材質 Material |
|
閥體、閥蓋 Valve body、Valve cover |
鍛鋼、不銹鋼、合金鋼 Forged steel、Stainless steel、Alloy steel |
|
閥片 Valve plate |
高鉻不銹鋼 High chrome stainless steel |
|
閥座 Valve seat |
STL合金 STL Alloy |
|
過濾網 Filtrating screen |
不銹鋼 Stainless steel |

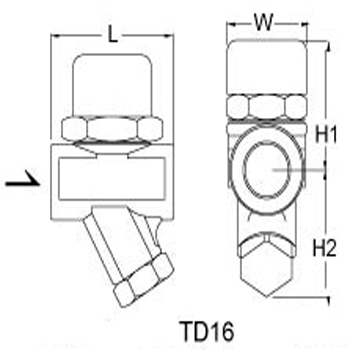

外形尺寸和重量/Prime out-form dimensions and weigh
|
產品型號 Product model |
口徑(DN) Calibre |
L法蘭 Flange |
L螺紋/ 焊接 Thread/ welding |
H1 |
H2 |
W |
重量(kg) weight |
使用壓力 范圍(MPa) Pressure Change range |
公稱壓力 (MPa) Nominal pressure |
|
TD16 |
|
|
|
|
|
|
|
|
|
注解
1、選型時請提供工作壓力、工作壓差、凝結水發生量、工作溫度、連接方式及標準。2、凝結水負荷的安全系數一般為2～3倍。
3、正確安裝、定期保養清除閥內污物，保證疏水閥正常工作和延長使用壽命。
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
